LAYSHAFT + GEARS

Layshaft Diag

Layshaft Diag

Stormer Layshaft Detail

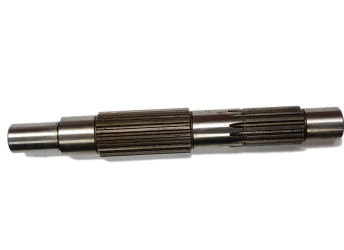

GEARBOX LAYSHAFT

GEARBOX LAYSHAFT


27775
In stock
Exploded View No. 44
Price: £94.14 Inc. VAT. (£78.45 Exc. VAT at 20%)

SQUARE SECTIONED CIRCLIP

SQUARE SECTIONED CIRCLIP


27804
In stock
Exploded View No. 45
Price: £1.26 Inc. VAT. (£1.05 Exc. VAT at 20%)

THRUST WASHER

THRUST WASHER


25842
In stock
Exploded View No. 59
Price: £4.73 Inc. VAT. (£3.94 Exc. VAT at 20%)

L/S END BEARING

L/S END BEARING


27828
In stock
Exploded View No. 70
Price: £16.80 Inc. VAT. (£14.00 Exc. VAT at 20%)

WASHER THRUST L/S OUTPUT GEAR

WASHER THRUST L/S OUTPUT GEAR


0710063
In stock
Exploded View No. 71
Price: £5.20 Inc. VAT. (£4.33 Exc. VAT at 20%)

GEAR 18T, L/S 4TH

GEAR 18T, L/S 4TH


27777
In stock
Exploded View No. 72
Price: £38.94 Inc. VAT. (£32.45 Exc. VAT at 20%)

GEAR 20T

GEAR 20T


30783
In stock
Exploded View No. 73
Price: £50.40 Inc. VAT. (£42.00 Exc. VAT at 20%)

GEAR 22T, L/S 2ND, C.R.

GEAR 22T, L/S 2ND, C.R.


29111
In stock
Exploded View No. 74
Price: £50.40 Inc. VAT. (£42.00 Exc. VAT at 20%)

WASHER THRUST L/S 1st-2nd

WASHER THRUST L/S 1st-2nd


29577
In stock
Exploded View No. 75
Price: £3.90 Inc. VAT. (£3.25 Exc. VAT at 20%)

GEAR 25T L/S 1st,

GEAR 25T L/S 1st,


31058
In stock
Exploded View No. 76 (close ratio)
Price: £50.40 Inc. VAT. (£42.00 Exc. VAT at 20%)

GEAR 28T, L/S 1ST, W.R.

GEAR 28T, L/S 1ST, W.R.


30784
In stock
Exploded View No. 76 (wide ratio)
Price: £50.40 Inc. VAT. (£42.00 Exc. VAT at 20%)

RATCHET, KICKSTART

RATCHET, KICKSTART


D8534
In stock
Exploded View No. 77
Price: £24.23 Inc. VAT. (£20.19 Exc. VAT at 20%)

K/START SHAFT BEARING

K/START SHAFT BEARING


27829
In stock
Exploded View No. 78
Price: £10.56 Inc. VAT. (£8.80 Exc. VAT at 20%)

WASHER THRUST L/S 1st-k/start

WASHER THRUST L/S 1st-k/start


25845
In stock
Exploded View No. 79
Price: £4.98 Inc. VAT. (£4.15 Exc. VAT at 20%)

SHAFT, KICKSTART

SHAFT, KICKSTART


25838
In stock
Exploded View No. 80
Price: £59.34 Inc. VAT. (£49.45 Exc. VAT at 20%)

SPRING, K/STRT RATCHET

SPRING, K/STRT RATCHET


E8177
In stock
Exploded View No. 81
Price: £7.25 Inc. VAT. (£6.04 Exc. VAT at 20%)
